| Display a colori touch screen | Color touch screen display |
| 100 programmi memorizzabili | 100 storable programs |
| Microscopio binoculare Leica 10x | Binocular microscope 10x |
| Otturatore LCD ad elevata luminosità | High brightness shutter LCD |
| Joystick interno alla camera di saldatura | Joystick internal in welding chamber |
| Illuminazione a LED | Powerful LED lights |
| Peso e dimensioni contenute | Low weight and dimensions |
| Bassa rumorosità | Low noise |
| Grandi porte accesso frontali | Big frontal access doors |

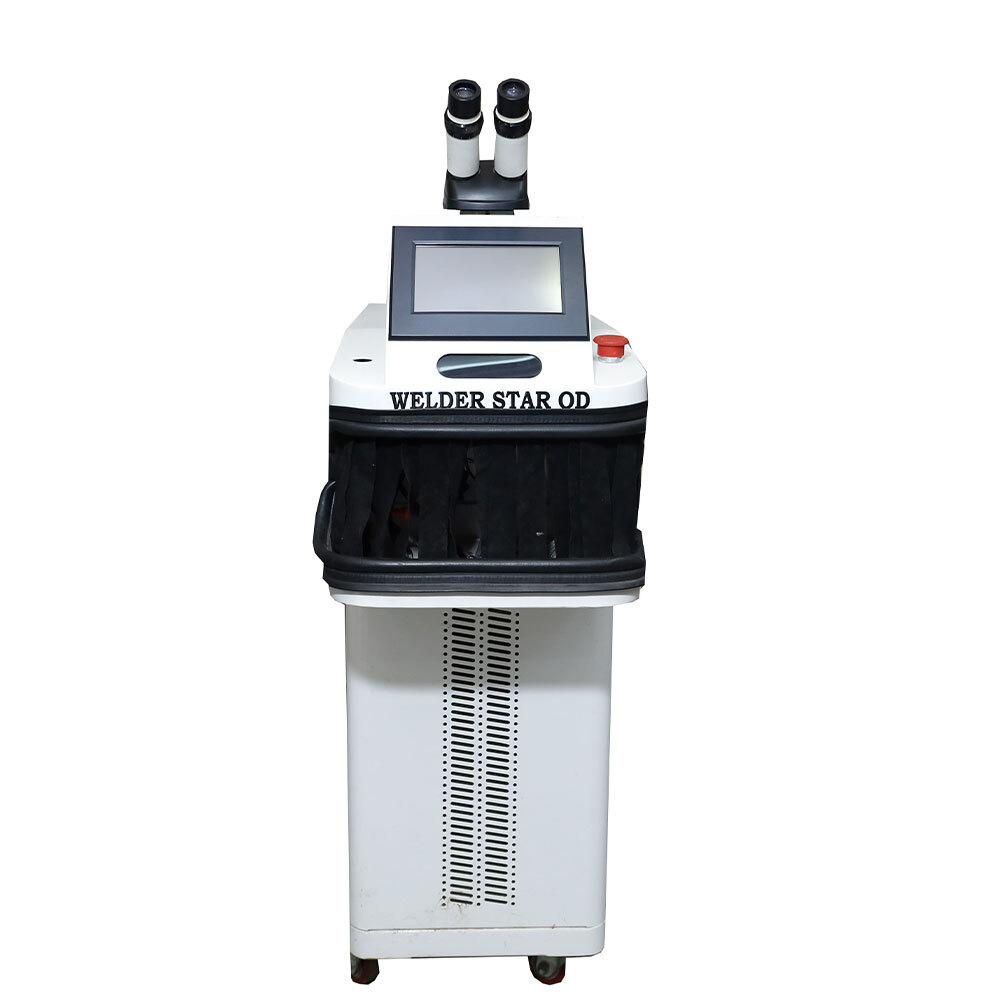

| Welder Star OD | |
| Laser source and wavelength | Nd: YAG 1064 nm |
| Average Power | 230W |
| Peak power [kW] | 6.5 kW |
| Energy (Joule) | 0.1 ÷ 100 J |
| Impulse time | 0.1 ÷ 20 Ms |
| Pulse frequency | 0.5 ÷ 30 Hz |
| Spot diameter | 0.2 ÷ 2.0 mm |
| Programs | Pulse wave shape 6 |
| Memories for programs | 100 |
| Internal control | Joystick |
| External control | 8" Color Touch Screen |
| Input power | 230 V AC, 50/60 Hz |
| Max Current | 8 A |
| Max dimension [W×D×H] | L 930 × W 340 × H 720 (mm) |
| Type | Bench Model (+Pedestal on request) |
| Argon / Air nozzle | Yes / Yes |
| Microscope Mod. | Binoculars 10x |
| Integrated Camera | Yes |
| Interior lighting | LED |
