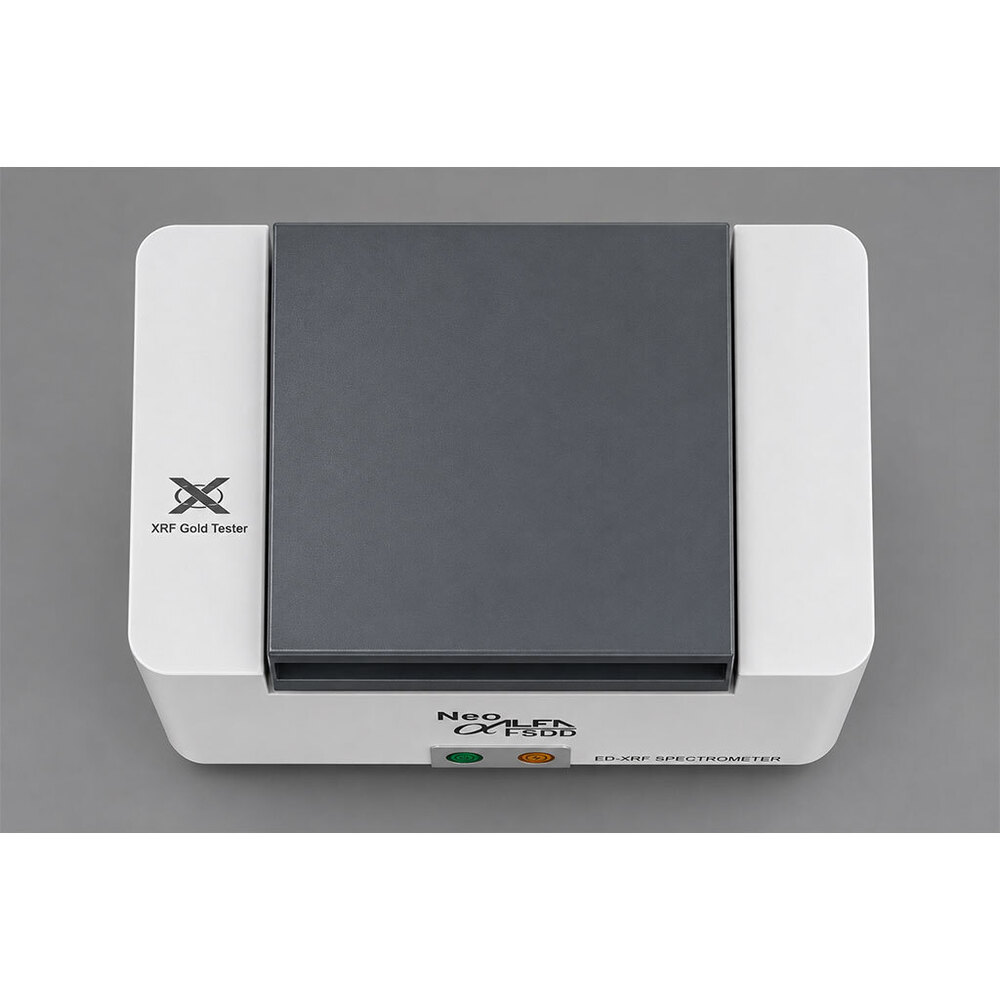

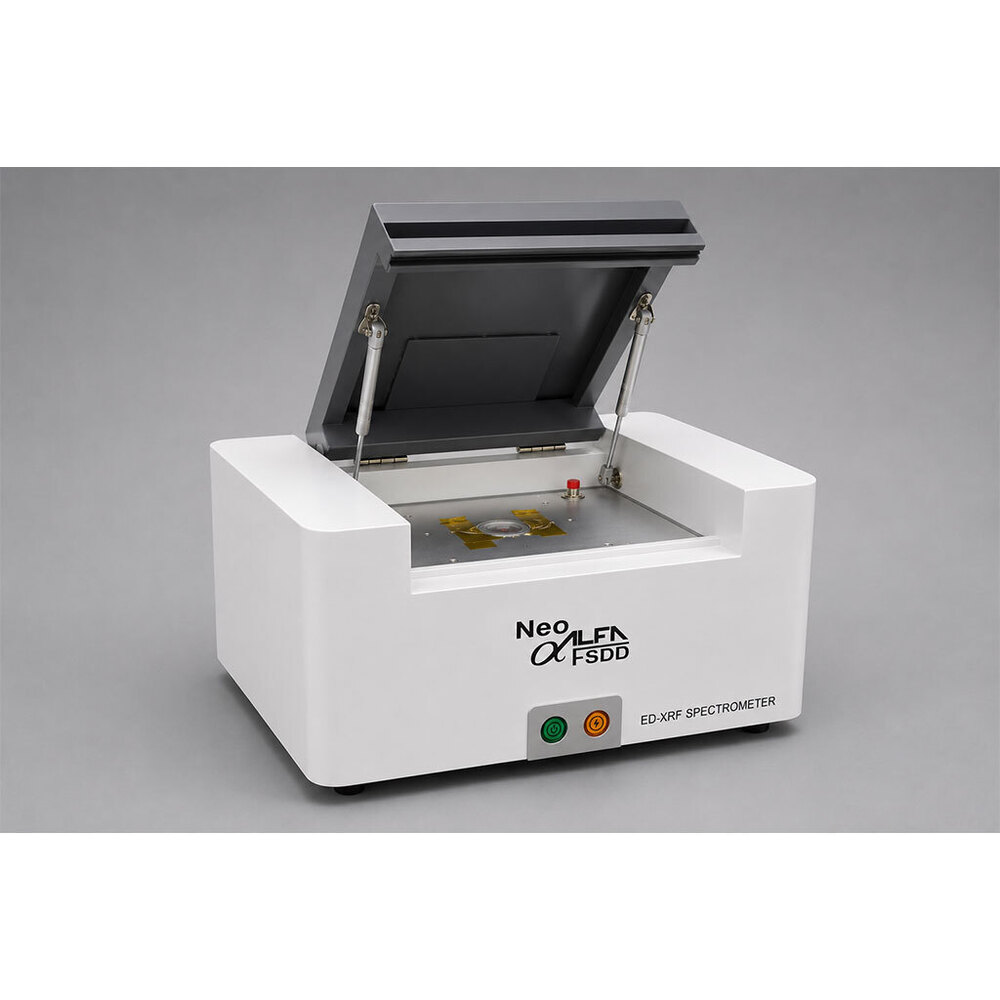

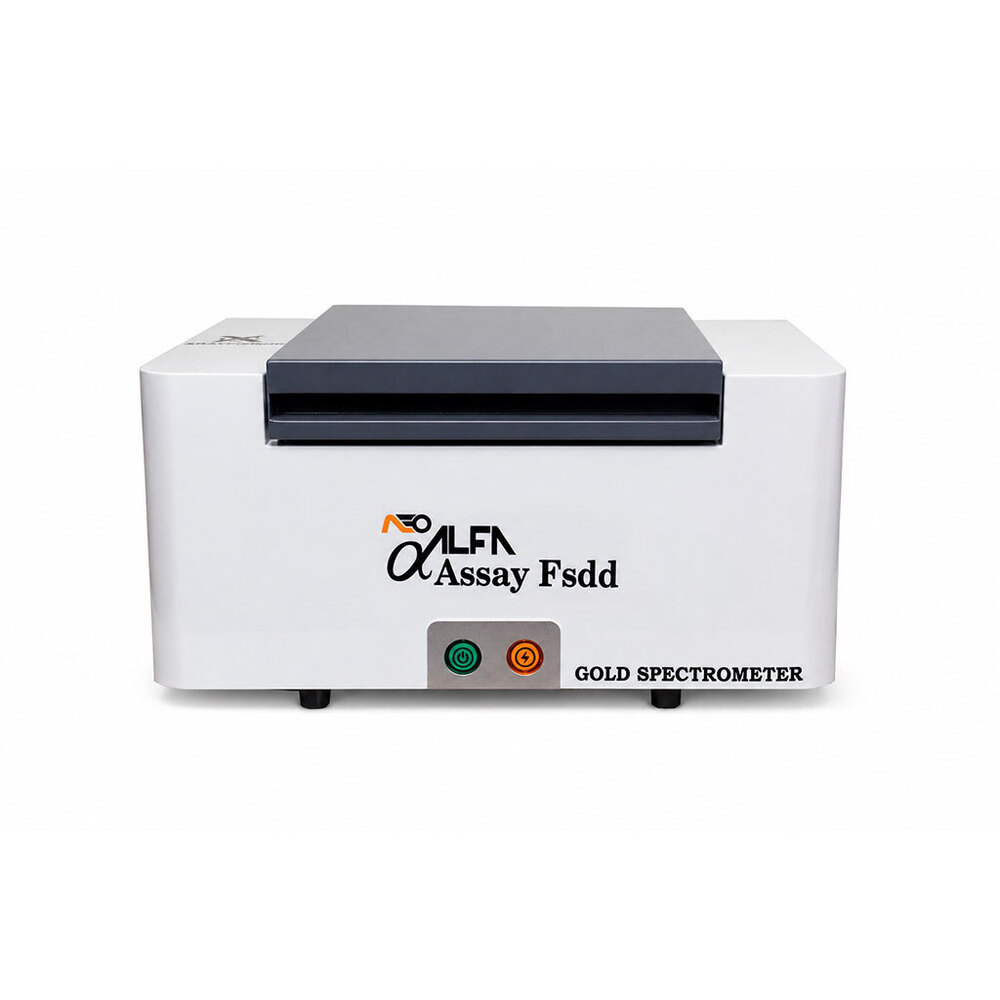

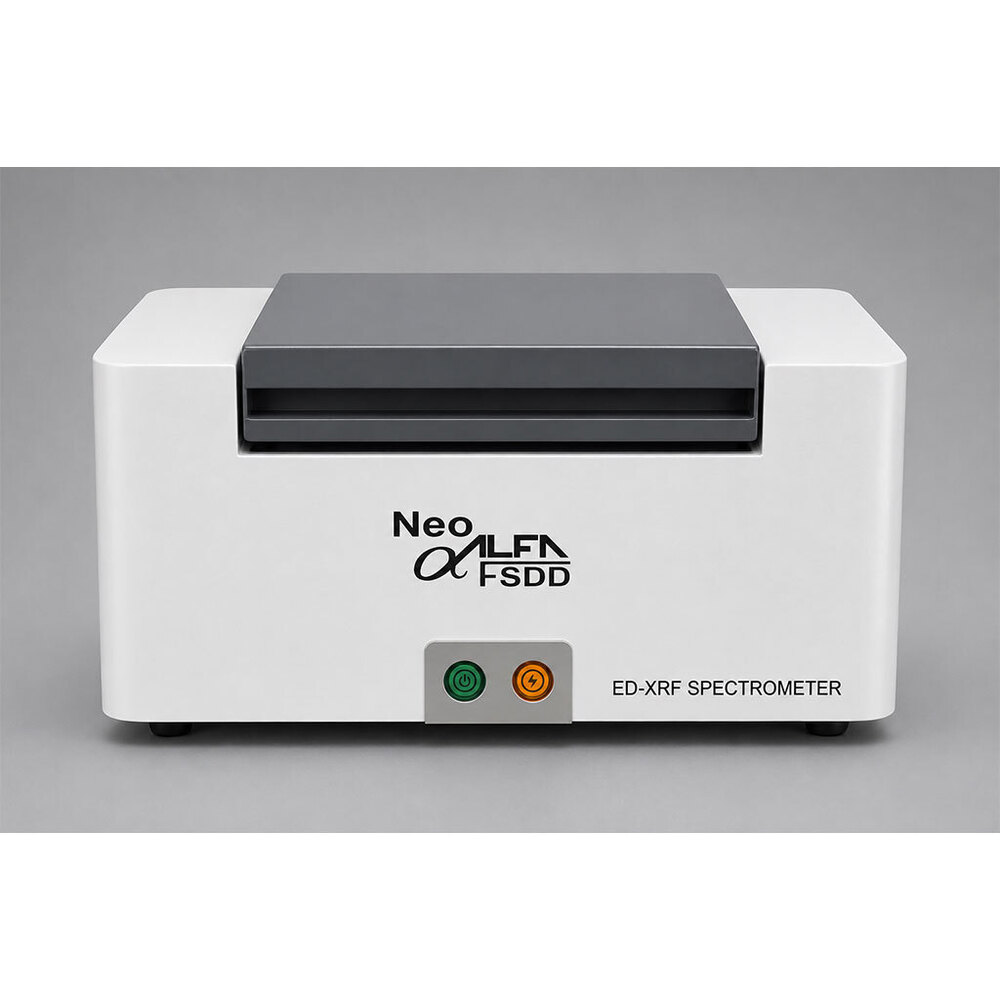

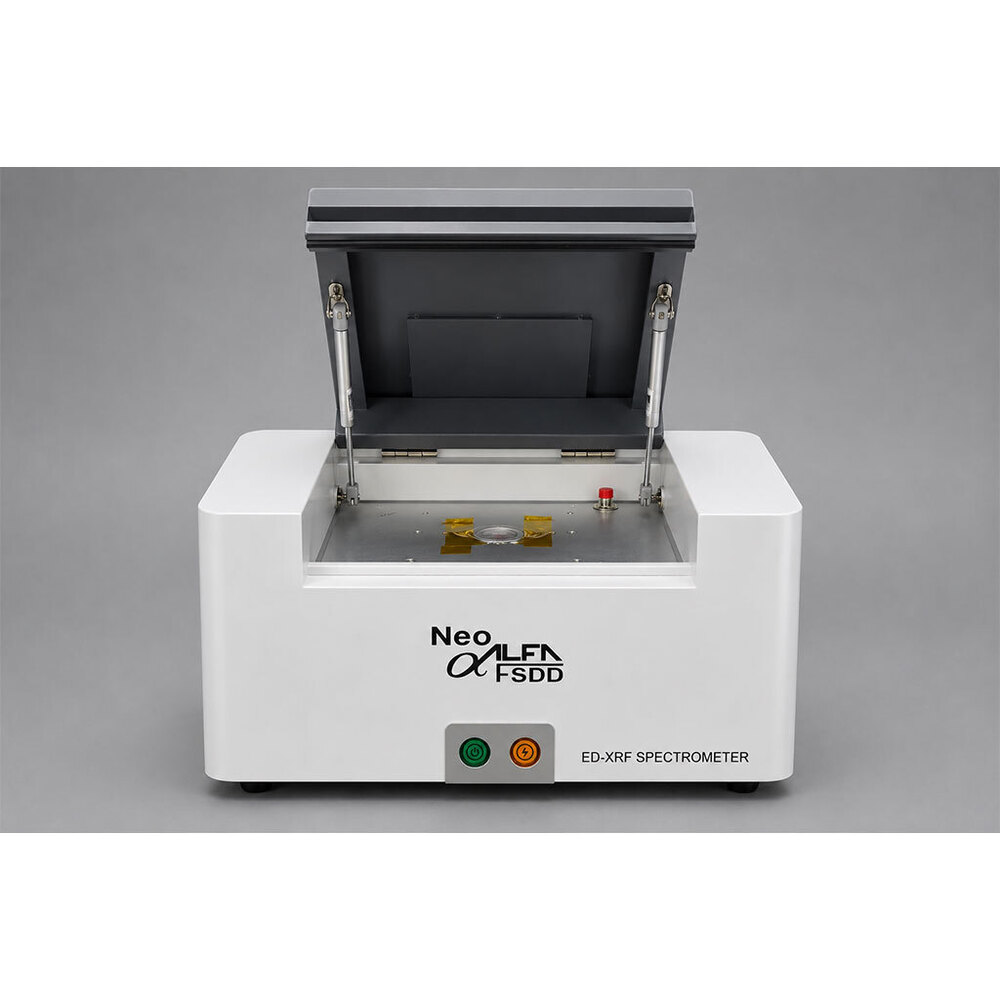

NEO SILVER ASSAY [ SI-PIN , SDD , FSDD ]

Delivers precise gold purity results in just 10 seconds - with built-in touchscreen, instant printouts, and no PC needed.
1 YEAR
WARRANTY
AERB
APPROVED
100%
RETAIL-READY

Unique Features

  • Detect Plated Jewellery - Alerts on 20-35 micron layers.
  • 30+ Elements Analysed - Trust what you sell.
  • Custom Reports - With purity, weight & your logo.
  • One-Touch Operation - Test, Print, Done.

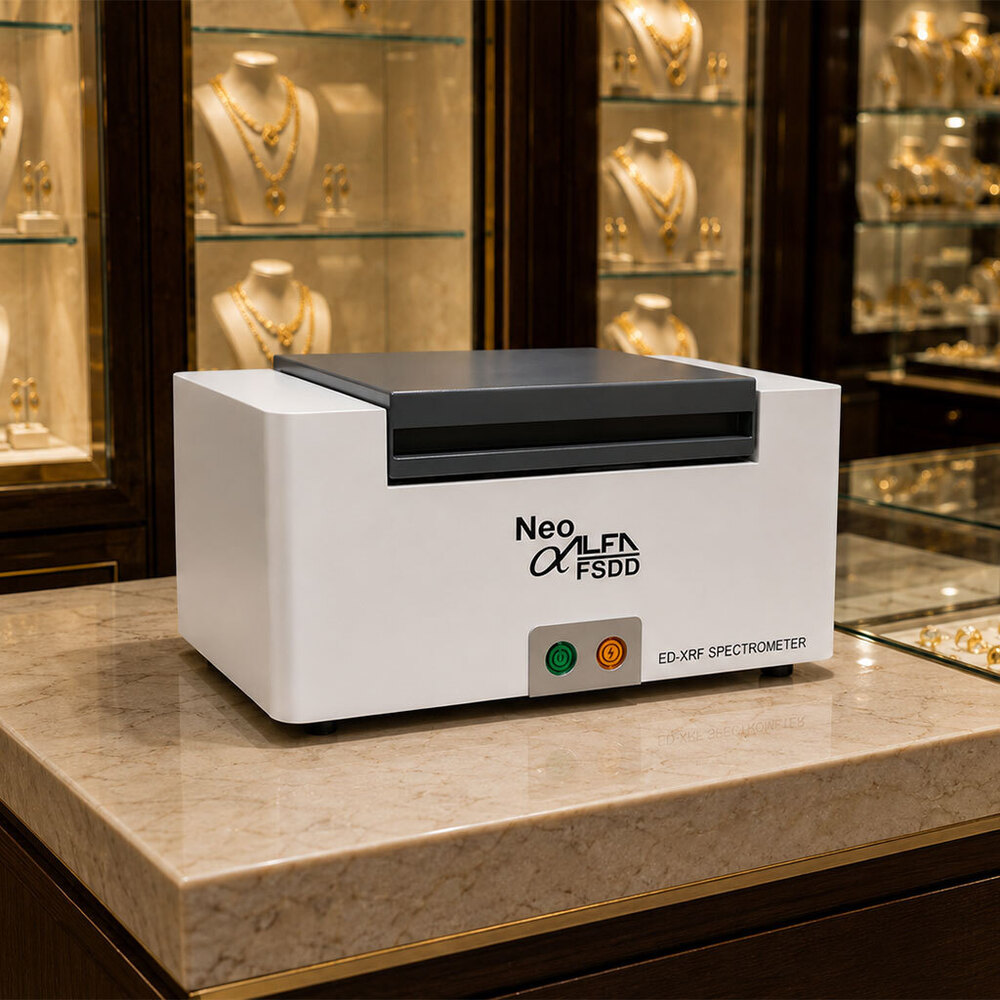

  • Built for Tight Spaces - Durable and reliable for your busy shop.
ENQUIRE NOW DOWNLOAD BROCHURE CLICK TO CHAT
Product Specifications
X-ray Excitation 50 W (50kV and 1mA) micro-focused Wanode tube
Detector AmpTek Super Silicon Drift Detector (FSDD) with 100eV Resolution or Better
Focal Depth Single fixed focal depth with laser and auto focus
Video Magnification 20x: Standard
Working Envionment: 50° F 10°C) to 104°F (40°C) and up to 98% BIL, non-concensing
Weight 25kg
Optional Manual XY Sample Stage Table Size11x10”
Travel 1.5x1.5”
Element Range Aluminum 13 to Uranium 92
Analysis layers and elements 5 layer (4 layers + base) and 10 elements in each layer Composition analysis of up to 25 elements simultaneously
Filters/Collimators 4 primary filters / single collimator (optional dual)
Didital Pulse Processing 4096 CH digital multi-channel analyser with flexible shaping time. Automatic signal processing including dead time correction and escape peak correction.
Processor Intel, CORE i5 3470 (3.2GHz), 8GB DDB3 Memory, Microsoft Windows 10 Prof, 64bit equivalent
Camera optics: 1/4” CMOS-1280x720 VGA resolution.
Power Supply: 150W, 100-240 volts, frequency range 47Hz to 63Hz
Dimensions (HxWxD) Internal ‘Comm 14”%, 325mm, 200mm (12”)
Exterra : 325mm (13”), 350mm (14”), 450mm (18”)
