| Type | Portable |
| Weight | 4.6 KG (without Battery) |
| Size | 200mm x 200mm x 288mm (L x W x H) |
| Sample Chamber Size | 170mm x 130mm x 60mm (L x W x H) |
| Detection Range | Al - U |
| Language | Multi languages including Chinese, English |
| Detector |
PeDX G6S-Si-Pin detector PeDX G7-SDD detector |
| Optical Structure | Oblique |
| Tube Window | Beryllium (Be) window |
| Collimator | Equipped with 1.5mm collimator to reduce background noise, improve resolution and accuracy |
| Accuracy |
PeDX G6: ± 0.03% PeDX G7: ± 0.01% |
| Optical Structure | Oblique |
| Tube Window | Beryllium (Be) window |
| Collimator | Equipped with 1.5mm collimator to reduce background noise, improve resolution and accuracy |
| Accuracy | PeDX G5: ±0.03% PeDX G7: ±0.01% |
| Display System | 5.7-inch industrial-grade resistance touch screen Automatic display brightness adjustment according to environment |
| Computer Parameter | 1. MX 6 Quad, quad-core Cortex-A9 processor |
| Data Printing | Bluetooth printer |
| Data Transmission | Built-in 32G system memory, USB, Bluetooth |
| Algorithm | Adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |
| Camera | Built-in camera provides intuitive sample positioning and image recording function, ensuring accurate X-ray irradiation and operation |
Advantages
XRF technology provides reliable purity and composition data with an accuracy up to 0.01%.
Compared with traditional chemical methods, XRF precious metal analyzer provides results in seconds.
Small volume and lightweight make it easy to carry and use in various environments.
Built-in data management system for users to store, check and export test results.
Wireless printer support allows users to print reports and data quickly.
The entire analysis process can be completed in seconds with simple intelligent operation.

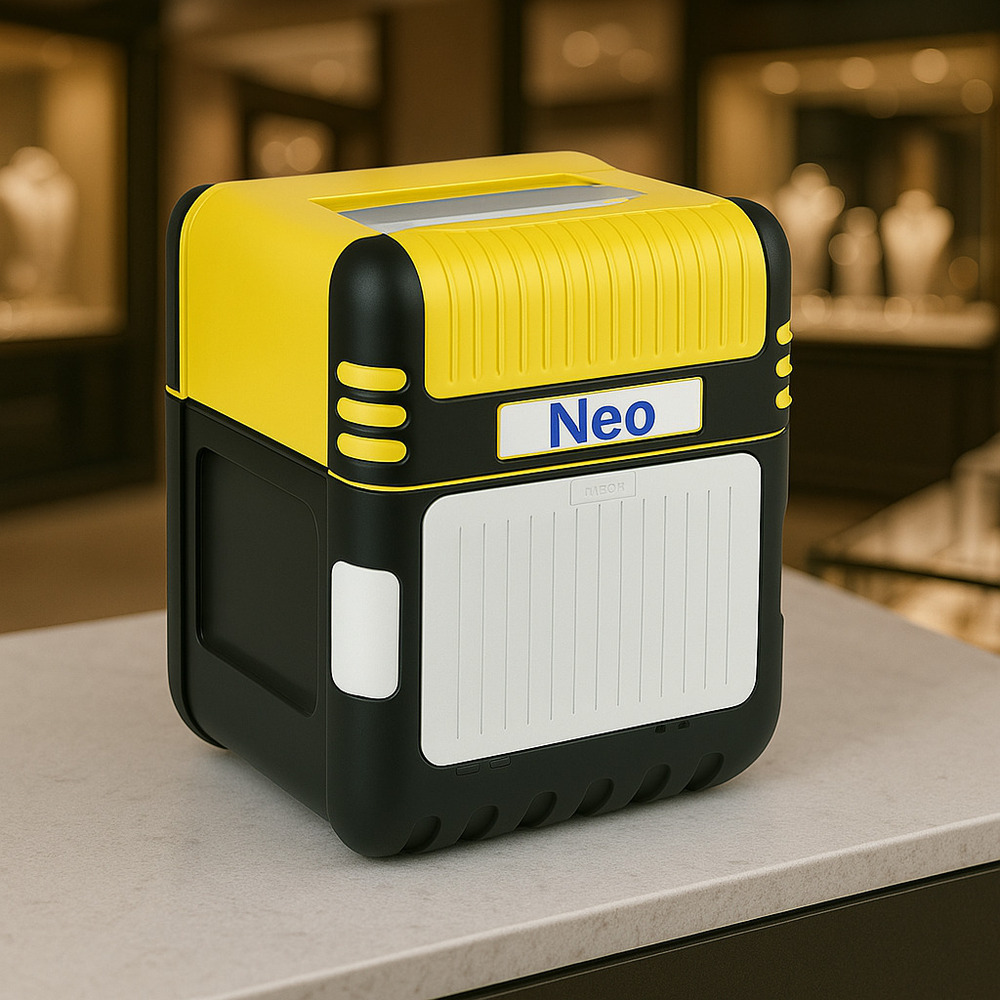

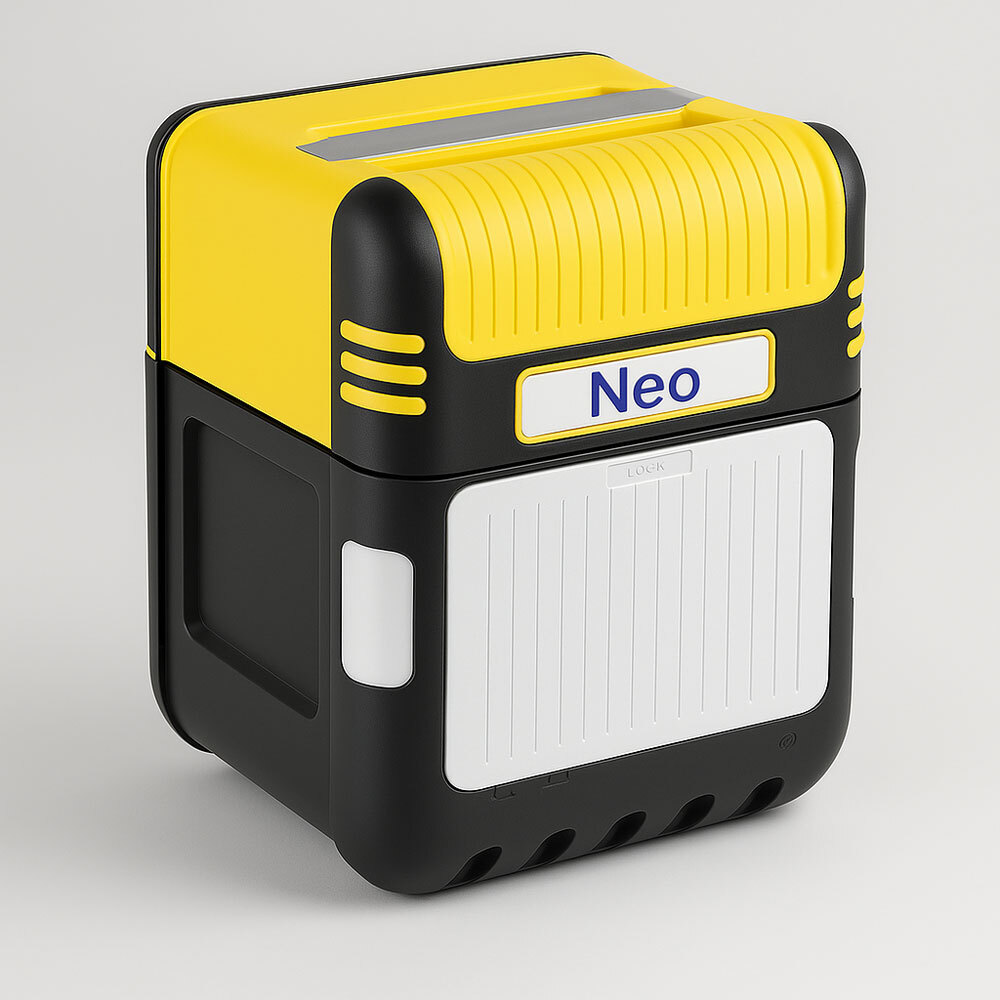

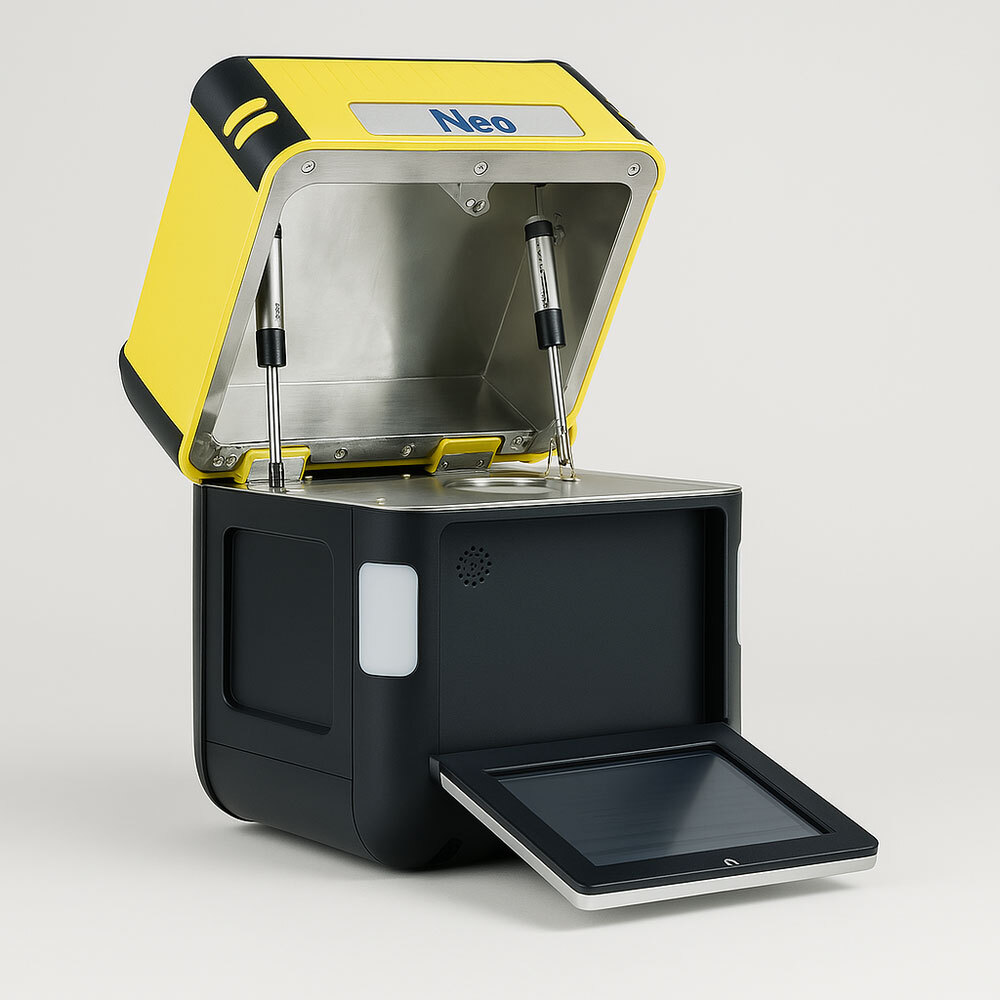

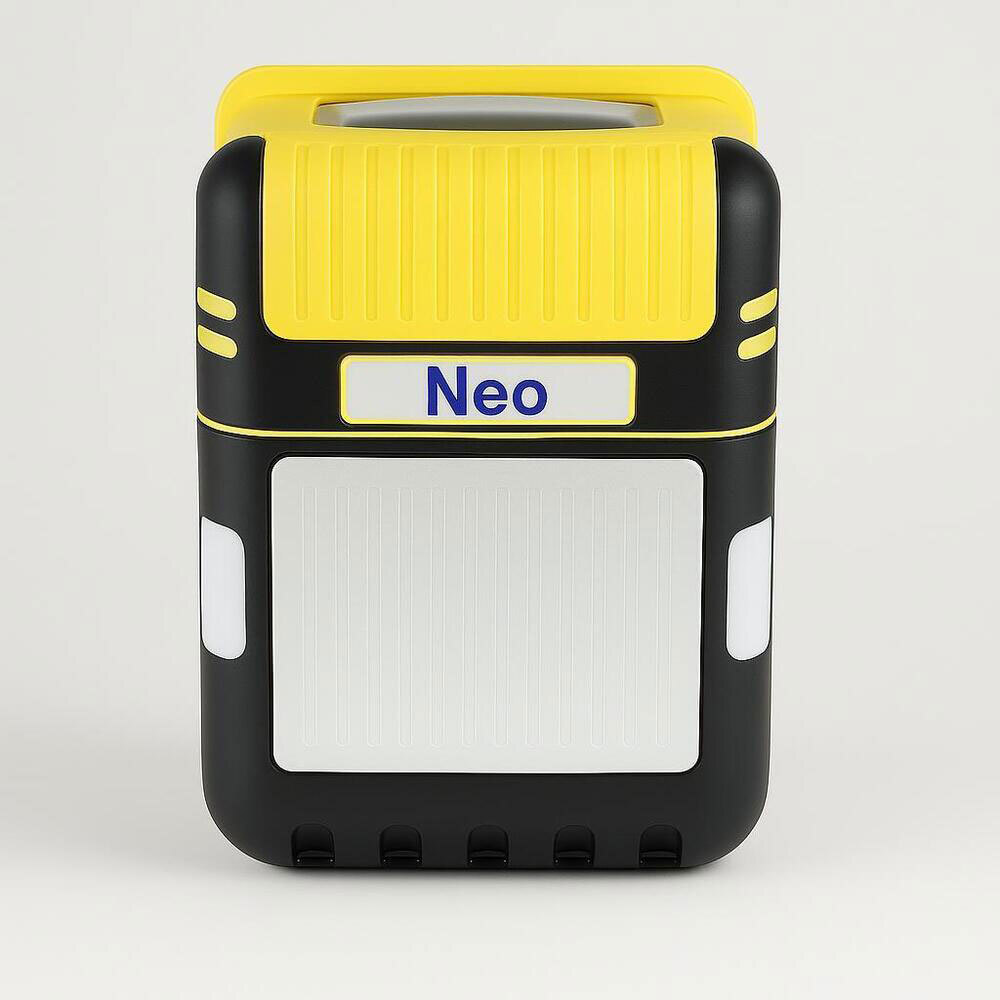

📦 Neo Smart Gold Testing Machine
Trusted by professionals across multiple industries.
Instantly verify gold purity and build complete customer trust.
Ensure accurate purity testing for quality control and production.
Reliable analysis for refining and processing of precious metals.
Make quick and accurate decisions with on-the-spot gold testing.
Verify and evaluate gold assets with confidence and accuracy.
Reliable and precise gold analysis for research and quality control.
Ideal for educational and research purposes in material science.
Ensures compliance and authenticity in gold quality verification.
Versatile solution for all gold testing needs across industries.
