| Coating Elemnt Range | P-U (Phosphorus to Uranium) |
| Detection Items |
|
| Sample Type | Solid, liquid, powder |
| X-ray tube |
Standard Mo target, optional W target and Rh target 0.1mm micro-focus X-ray tube Tube life >20,000 hours |
| Detector | Electrically cooled Si-PIN detector (14S±SeV), optional SDD detector (12S±SeV) |
| Test Time | 10s-30s (automatically adjusted by software) |
| Collimation System | Spot sizes: cp0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 1mm (customizable via software) |
| Camera Positioning | 12-megapixel resolution, crosshair, adjustable focus and brightness |
| Weight | 42Kg |
| Dimensions |
Overall: 500mmx380mmx360mm
Sample chamber: 300mmx300mmx120mm Micromotion platform: 30mmx20mm |
| Environmental Range |
Temperature: 1S°C-30°C
Humidity: 575% |
| Computer Configuration | lntel(R) CPU, 8GB RAM, Windows 10/11 OS |
| Display | 22-inch display |
| Data Storage | 256GB solid-state drive, capable of storing hundreds of millions of data entries |
| Radiation Protection Standards | Compliant with GB18871-2002 and GBZ115-2002 standards |
Advantages
A top-illuminated electroplating coating thickness detector with a detection limit of 0.001µm and a detection accuracy of RSD < 1%. It can be configured with an SOD high-resolution thickness gauge.
Equipped with a 12-megapixel high-definition camera to easily distinguish the test area.
Manual adjustment of the XY platform for easy positioning of the test area.
Multi-layer coating detection: Detection layer range 1-5 layers; detection range of element content in
plating solution 1ppm - 99.99%.
Mobile platform range 160x160mm, sample chamber height 120mm, crosshair positioning.
Detected coating types: metal electroplating coatings, plastic electroplating coatings, electroplating
Adopts multi-modal MultiRay-FP testing algorithm, with measurement accuracy and stability fluctuating in thousandths. Multiple repeated tests can be set, and relevant statistical data can be displayed: maximum value, minimum value, average value, relative standard deviation (RSD), etc.
For alloy substrates/composite coatings, in addition to detecting coating thickness, it can display the composition ratio between elements, atomic percentage, or mass percentage.
Diverse settings for print reports, classified storage, and printing of test records by different operators.
📦 Neo Smart Gold Testing Machine
Trusted by professionals across multiple industries.

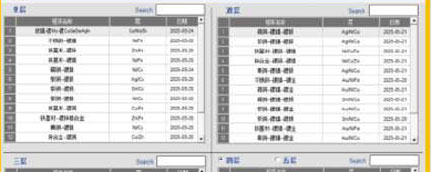

The software can preset 25 application programs and display them classified by

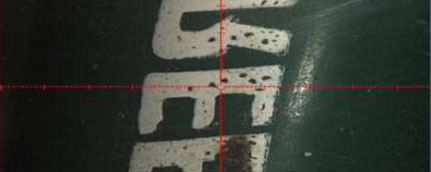

High-pixel camera with 800x magnification for clear visualization of the test sample area.

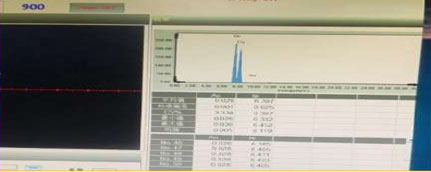

Uses a powerful FP algorithm to ensure data accuracy and stability. Displays the elemental composition of the tested material.

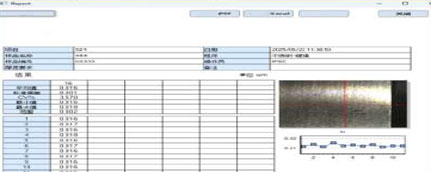

One-click preview and printing of result reports, with customizable report headers and company logo addition.
Integrated one-click testing function for convenient production testing.
Standard configuration of six collimators (q,0.lmm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, Imm) to adapt to testing of all materials.
